Description

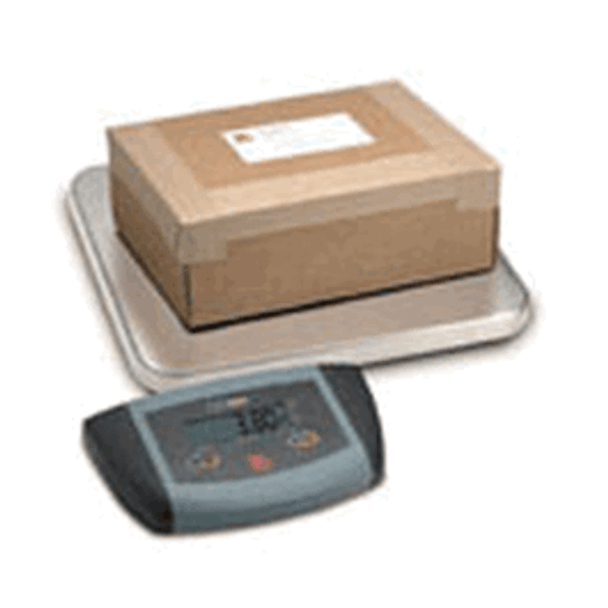

The ES Series Multipurpose Low Profile Bench Scales are available in six models ranging from 6 kg to 200 kg. The three-way mounting bracket allows you to mount the indicator to the scale base, above the scale platform, or on any vertical surface. Stainless steel platform and painted steel frame.
• Application: Weighing
• Display: Liquid Crystal Display (LCD)
• Operation: AC Adapter (Included) or 3 C (LR14) Batteries (Not Included)
• Construction: ABS Indicator, Stainless Steel Platform
• Design Features: Stability indicator, auto-zero tracking, 3 way mounting bracket (column, wall and platform)
Image(s) are representative of the product group and not necessarily the individual product.
Capacity: 6 kg / 13.2 lb
Readability: 0.002 kg / 0.005 lb
Weighing Units: kg, lb, oz, lb:oz
Platform Size: 12.2 x 10.8 x 1.5 in. (31 x 27 x 4 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 6.6 lbs (3 kg)
Shipping Dimensions: 13 x 15 x 5.5 in. (32 x 37 x 14 cm)
Shipping Weight: 8.8 lbs (4 kg)
Span Calibration: 1
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
Capacity: 30 kg / 66 lb
Readability: 0.01 kg / 0.05 lb
Weighing Units: kg, lb, oz, lb:oz
Platform Size: 12.2 x 10.8 x 1.5 in. (31 x 27 x 4 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 6.6 lbs (3 kg)
Shipping Dimensions: 13 x 15 x 5.5 in. (32 x 37 x 14 cm)
Shipping Weight: 8.8 lbs (4 kg)
Span Calibration: 1
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
Capacity: 50 kg / 110 lb
Readability: 0.02 kg / 0.05 lb
Weighing Units: kg, lb, oz, lb:oz
Platform Size: 12.2 x 10.8 x 1.5 in. (31 x 27 x 4 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 6.6 lbs (3 kg)
Shipping Dimensions: 13 x 15 x 5.5 in. (32 x 37 x 14 cm)
Shipping Weight: 8.8 lbs (4 kg)
Span Calibration: 1
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
Capacity: 50 kg / 110 lb
Readability: 0.02 kg / 0.05 lb
Weighing Units: kg, lb, oz, lb:oz
Platform Size: 20.5 x 15.7 x 3 in. (52 x 40 x 7.5 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 33 lbs (15 kg)
Shipping Dimensions: 19 x 24 x 9 in. (48 x 60 x 23 cm)
Shipping Weight: 38 lbs (17 kg)
Span Calibration: 1
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
Capacity: 100 kg / 220 lb
Readability: 0.05 kg / 0.1 lb
Weighing Units: kg, lb, oz, lb:oz
Platform Size: 20.5 x 15.7 x 3 in. (52 x 40 x 7.5 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 33 lbs (15 kg)
Shipping Dimensions: 19 x 24 x 9 in. (48 x 60 x 23 cm)
Shipping Weight: 38 lbs (17 kg)
Span Calibration: 0.5
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
Capacity: 200 kg / 440 lb
Readability: 0.1 kg / 0.2 lb
Weighing Units: kg, lb, oz
Platform Size: 20.5 x 15.7 x 3 in. (52 x 40 x 7.5 cm)
Indicator Stand: 4 in. (10 cm)
Platform Construction: Stainless steel deck / black painted frame
Scale Weight: 33 lbs (15 kg)
Shipping Dimensions: 19 x 24 x 9 in. (48 x 60 x 23 cm)
Shipping Weight: 38 lbs (17 kg)
Span Calibration: 0.5
Display: LCD, 1 in. (2.54 cm)
Keyboard: 2 function membrane switches
Power Requirements: 9V DC, 500 mA AC adapter (included) or (6) Alkaline AA batteries (not included)
Battery Life (typical): 120 hours / 30 hours continuous use
Stabilization Time: 3 s
Operating Temperature Range: 14° to 104°F (-10° to 40°C)
Storage Temperature: 14° to 158°F (-10° to 70°C)
